Readers

CSR-522QR

csr512
  • SIZE 6.26”x4.05”x1.05”
  • RF POWER up to 0.5W
  • FREQUENCY 902MHz to 928MHz (FHSS)
  • ANTENNAS 4 RP-SMA (VSWR < 1.15)
  • INTERFACE +12V DC, RS-232, 2 GPI, 2 GPO
  • READ RANGE 30'

MPR-6010AR

mpr6010ar
  • SIZE 9.8” x 9.8” x 1.3"
  • RF POWER 1W (30dBm)
  • FREQUENCY 902MHz to 928MHz (FHSS)
  • ANTENNA Integrated RHCP Patch Antenna
  • INTERFACE +12V DC, RS-232
  • READ RANGE 30'

MPR-6080AR

mpr6080ar
  • SIZE 9.8” x 9.8” x 1.3"
  • RF POWER 1W (30dBm)
  • FREQUENCY 865MHz to 868MHz (EU) (FHSS)
  • ANTENNA Integrated RHCP Patch Antenna
  • INTERFACE +12V DC, RS-232
  • READ RANGE 25'

CSR-310

csr-210
  • SIZE 4.9" x 3.1" x 1"
  • RF POWER 500mW (27dBm)
  • FREQUENCY 902MHz to 928MHz (FHSS)
  • INTERFACE RS232/RS485
  • READ RANGE 7'

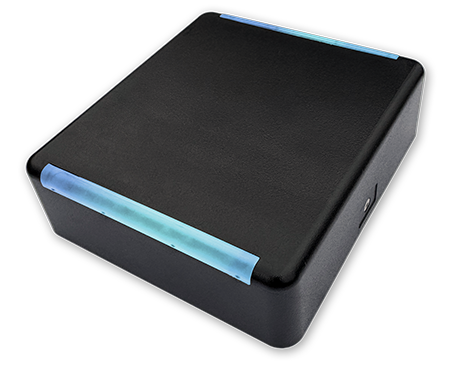

CSR-320

csr-320
  • SIZE 3.625" x 3.25" x 1.0625"
  • RF POWER 500mW (27dBm)
  • FREQUENCY 902MHz to 928MHz (FHSS)
  • INTERFACE RS232/RS485
  • READ RANGE 3'
