Antennas

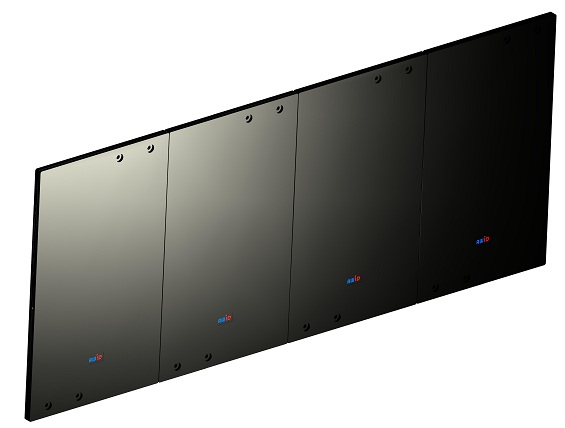

ANT-915TC

ANT 915 CPS
  • Operational Frequency 902-928MHz
  • Near Field Applications
  • Linear Polarized
  • VSWR less than 1.40
  • Size 11" x 26.4" x 0.32” (279mmX670mmX8mm)
  • RF Connector Reverse Polarity TNC

ANT-915CP-R

ANT 915 CPS
  • Operational Frequency 902-928MHz
  • Maximum Gain +5.5dBi
  • Right Hand Circular Polarized (RHCP)
  • Axial Ratio 0.42 dB
  • VSWR less than 1.15
  • Size 9.84”x9.84”x1.29” (250mmX250mmX33mm)
  • RF connector Reverse Polarity TNC

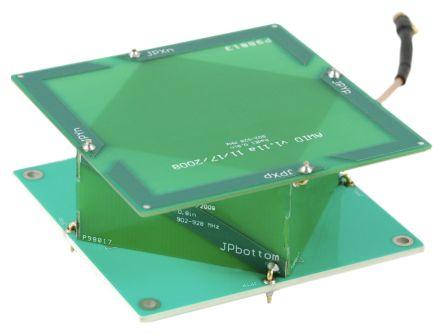

ANT-915CP-0.5



ANT 915 CP-0.5



  • Operational Frequency 902-928MHz
  • Maximum Gain +1.1dBi
  • Right Hand Circular Polarized (RHCP)
  • Axial Ratio 0.9dB
  • VSWR less than 1.30
  • Size 2.80"x2.38"x0.60" (71.1mmX60.5mmX15.2mm)
  • RF connector Right Angle Plug MMCX

ANT-2012

ANT-2012
  •  Operational Frequency 902-928MHz
  • Maximum Gain +5.4dBi
  • Right Hand Circular Polarized (RHCP)
  • Axial Ratio 0.50dB
  • VSWR less than 1.15
  • Size 8.5"x8.4"x1.28" (216mmX213mmX33mm)
  • RF Connector Reverse Polarity SMA

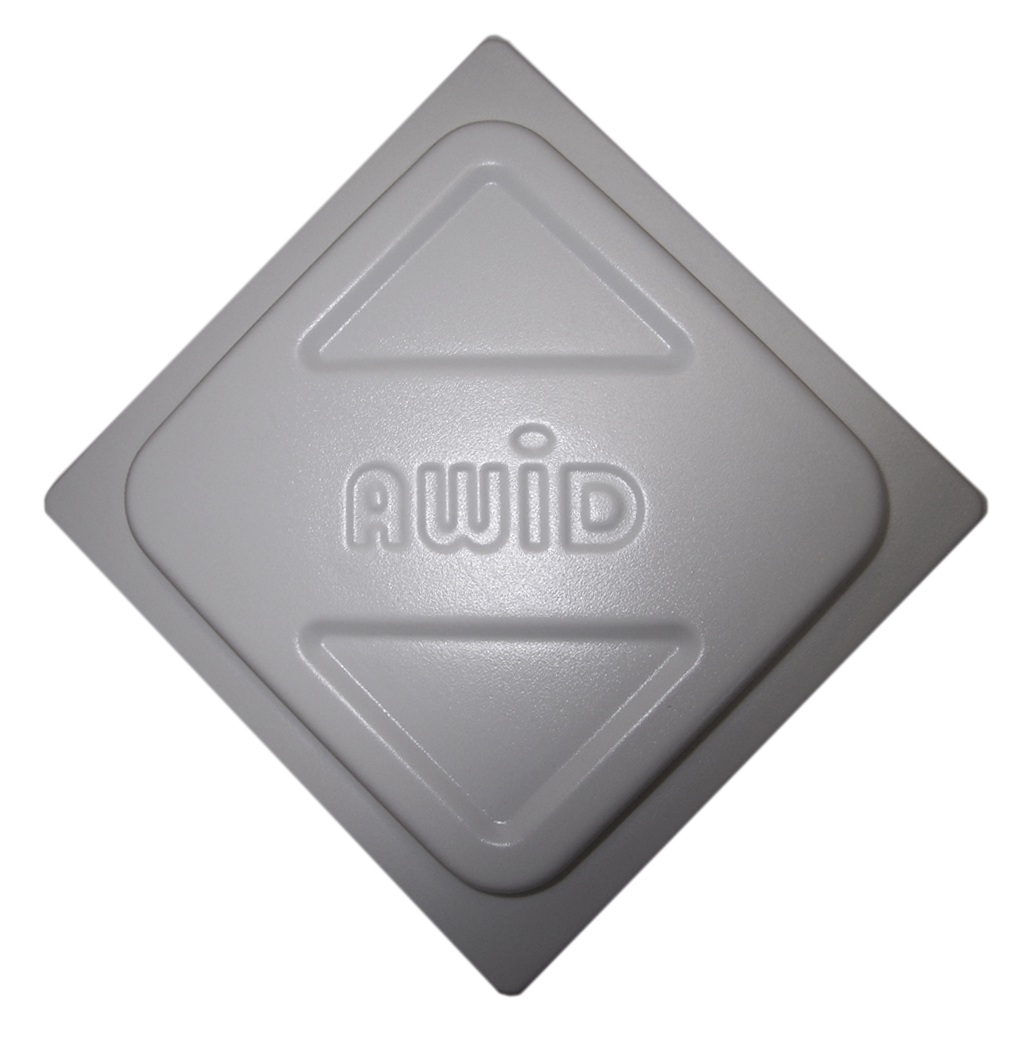

ANT-915CPS

ANT 915 CPS
  • Operational Frequency 902-928MHz
  • Maximum Gain +5.8dBi
  • Right Hand Circular Polarized (RHCP)
  • Axial Ratio 1.5dB
  • VSWR less than 1.12
  • Size 10.25”x10.25”x1.42” (260mmX260mmX36mm)
  • RF connector Reverse Polarity TNC
