Modules

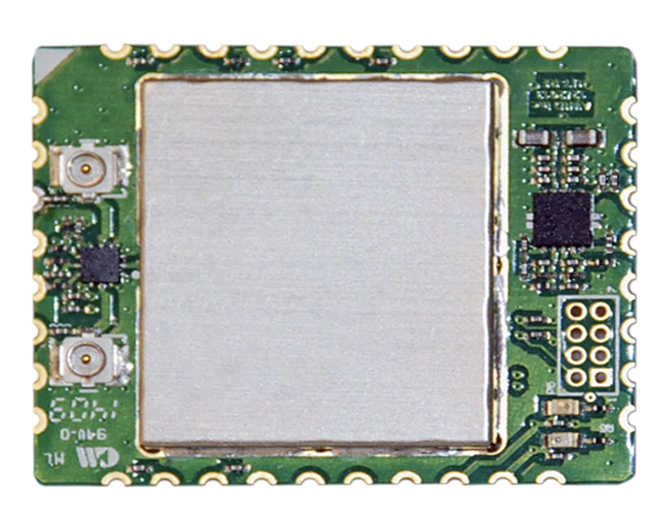

UTM-200

UTM 200



  • SIZE 1.2” x 1.0” x 0.2”
  • RF POWER 100mW (20dBm)
  • FREQUENCY 860MHz to 930MHz
  • ANTENNA 2 (U.FL Connector or edge pad)

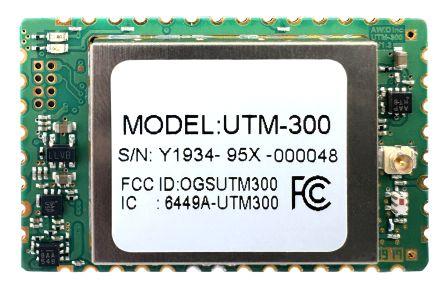

UTM-300


UTM300 cmps



  • SIZE 1.6” x 1.0” x 0.2”
  • RF POWER 500mW (27dBm)
  • FREQUENCY 860MHz to 930MHz
  • ANTENNA (U.FL Connector or edge pad)

ADB-510

ADB 510 175x121
  • SIZE 2.11” x 3.31” x 0.35”
  • RF POWER 1W (30dBm)
  • FREQUENCY 902MHz to 928MHz
  • ANTENNA (MMCX Connector)

ADB-522

ADB 512
  • SIZE 2.11” x 4.25” x 0.35”
  • RF POWER 1W (30dBm)
  • FREQUENCY 902MHz to 928MHz
  • ANTENNAS 4 (MMCX Connector)

PCB-125RM

125 kHz AWID Low Frequency module
  • Smart design for compact and low-power consumption applications
  • Patented design for metal surface mounting
  • Ready to read AWID and other supported credentials
  • Read range: up to 2”
  • Current: 30 mA (Operation), 1 uA (Standby)
  • Power requirement: 3 or 5 VDC
  • Dimensions: 1”x1.75”x0.188” (PCB), 1.43”x2.16” x0.125”(Coil)
