Low Frequency

Low-frequency (LF) RFID systems typically operate in the frequency band of 125 kHz or 134 kHz, which have the strongest ability to read tags on objects with high water or metal contents compared to any of the higher frequencies.  LF systems tend to be less sensitive to interference than higher frequency options.  However, LF RFID systems can read in a shorter range (< 0.5m or 1.5 ft) and slower read speed than the higher frequencies.

AWID Low-Frequency Solutions provide a full line of Access Control products, including proximity readers, credentials, and modules.

SENTINEL-PROXTM PROXIMITY READER SR-2400

SR-2400 Office Door

  • Compact size for mullion or door frame
  • Patented design for metal surface mounting
  • Ready to read all AWID codes
  • Compatible with most industry 125 KHz cards
  • Read range: up to 5.5”
  • 3-color LED and beeper inside reader
  • Basic 4-wire hook-up and 6 wires maximum
  • Power requirement: 5-12 VDC
  • Dimensions: 4.5”x1.8”x0.70”

READ MORE …

SENTINEL-PROXTM PROXIMITY READER SP-6820

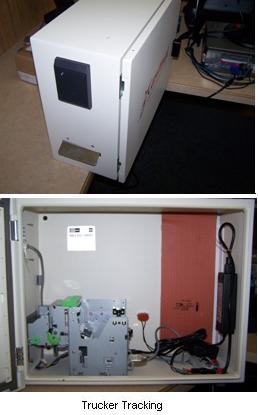

sp6820truckertracking3





    • Easy mounting directly on a single-gang box
    • Patented design for metal surface mounting
    • Ready to read all AWID codes
    • Compatible with most industry 125 KHz cards
    • Read range: up to 8”
    • 3-color LED and beeper inside reader
    • Basic 4-wire hook-up and 7 wires maximum
    • Power requirement: 5-12 VDC
    • Dimensions: 4.6”x3.1”x0.65”

READ MORE...

SENTINEL-PROXTM PROXIMITY READER KP-6840

KP-6840 Elevator

  • Ready for use of Card + PIN, PIN + Card, Card Only, or PIN Only
  • Patented design for metal surface mounting
  • Ready to read all AWID codes
  • Compatible with most industry 125 KHz cards
  • Read range: up to 8”
  • 3-color LED and beeper inside reader
  • Basic 4-wire hook-up and 7 wires maximum
  • Power requirement: 5-12 VDC
  • Dimensions: 4.6”x3.1”x0.88”

READ MORE …

SENTINEL-PROXTM PROXIMITY READER MM-6800

MM-6800 Gated Community

  • Fit perfectly on standard metal door frame or mullion
  • Patented design for metal surface mounting
  • Ready to read all AWID codes
  • Compatible with most industry 125 KHz cards
  • Read range: up to 8”
  • 3-color LED and beeper inside reader
  • Basic 4-wire hook-up and 7 wires maximum
  • Power requirement: 5-12 VDC
  • Dimensions: 4.6”x1.75”x1.0”

READ MORE …

SENTINEL-PROXTM PROXIMITY READER MR-1824

MR-1824 Garage Entry

  • Mid-range proximity reading distance
  • Patented design for metal surface mounting
  • Ready to read all AWID codes
  • Compatible with most industry 125 KHz cards
  • Read range: up to 24”
  • 3-color LED and beeper inside reader
  • Basic 4-wire hook-up and 7 wires maximum
  • Power requirement: 5-12 VDC
  • Dimensions: 4.6”x1.75”x1.0”

READ MORE …

PROX WAFER DISK PW-AWID

Prox Wafer on a standard Graphic Card

  • AWID’s most universal tag
  • One (1”) diameter disc
  • Semi permanent adhesive backing
  • Eliminate the expense and hassle of re-badging employees
  • Able to be inserted onto key fobs and remotes

READ MORE …

CLAM SHELL CARD CS-AWID

Clam Shell card

  • Credit card size with beveled edges
  • Pre-punched in portrait orientation
  • Off white color

READ MORE …

KEY TAG (KEY FOB) KT-AWID

KT with KP-6840
  • Modern guitar pick style
  • ABS construction for high endurance
  • Water resistant
  • Designed to fit key ring or key chain

READ MORE …

GRAPHIC & GRAPHIC MAG-STRIP CARD GR-AWID & GR-MAG-AWID

GR with DK-1025

  • Credit card size
  • Printable surface
  • Read range of 4 to 24 inches (depending on readers)
  • Customizable graphics quality, both sides!

READ MORE …

125 kHz RFID READER MODULE & ANTENNA PCB-125RM

125 kHz OEM Module

  • Smart design for compact and low-power consumption applications
  • Patented design for metal surface mounting
  • Ready to read AWID 26 to 58 bit and other supported protocols
  • Read range: up to 1”
  • Current: 30 mA (Operation), 1 uA (Standby)
  • Power requirement: 3 or 5 VDC
  • Dimensions: 1”x1.75”x0.188” (PCB), 1.43”x2.16” x0.125”(Coil)

READ MORE …
